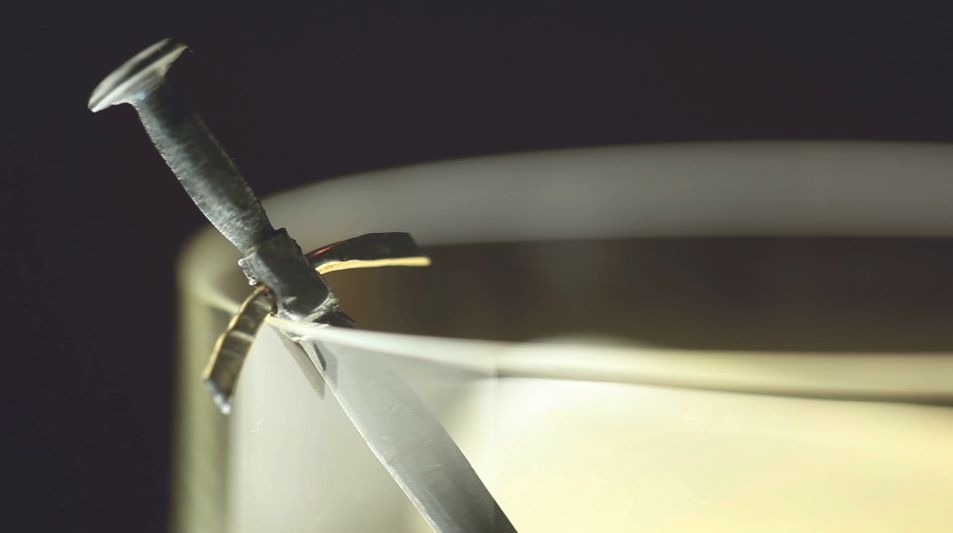

This DIY miniature whiskey / martini sword took me about 30 minutes to make.

Tools you need:

  • 1 framing nail
  • Small brass nail or thick brass or copper wire
  • Hammer
  • Anvil
  • Blowtorch
  • File
  • Drill with a small drill bit (1/16)
  • Sandpaper


Step 1: Making a handle

First we need to make a hole in the nail for the future handle guard. I fixed the nail on the anvil with the clamping wrench and marked the hole with a center punch. When i drilled the hole with an 1/16 drill bit. Next step is shaping the handle. It's easy to do with an improvised lathe (drill) and a file. After I finished shaping with a file, I polished it with a 250 and 800grid sand paper. It's easier to polish the handle at this stage, while the blade is not flat yet.



Step 2: Shaping the blade

Now you can try yourself as a real blacksmith, but on a smaller scale. =) Heat up the nail with a blowtorch and bang it with a hammer on an anvil. Nail is pretty soft than its red hot. If you don't have a blowtorch you can still flatten the nail. All you need is a bigger hammer and more patience. After initial shaping of the blade on an anvil, I flatten it out with a file.



Step 3: Sharpening

I used a file to setup sharp corners of the blade. Then polish it with the sandpaper 250grid and 800grid.



Step 4: Making a handle guard

To make a handle guard we need a small brass nail. Put it through the hole we drilled before and secure it with a few bangs of hammer. Cut the ends with pliers. Brass is very soft metal, you don't need to make it hot to shape. few hits oh a hammer and the handle guards will be flat. Then you can band them and finish them with files and sandpaper. The more you sand with a high grid sandpaper the more shiny your sword will be.



Step 5: Now you can enjoy your manly drink
